Avon C50 Twin Port Gas Mask

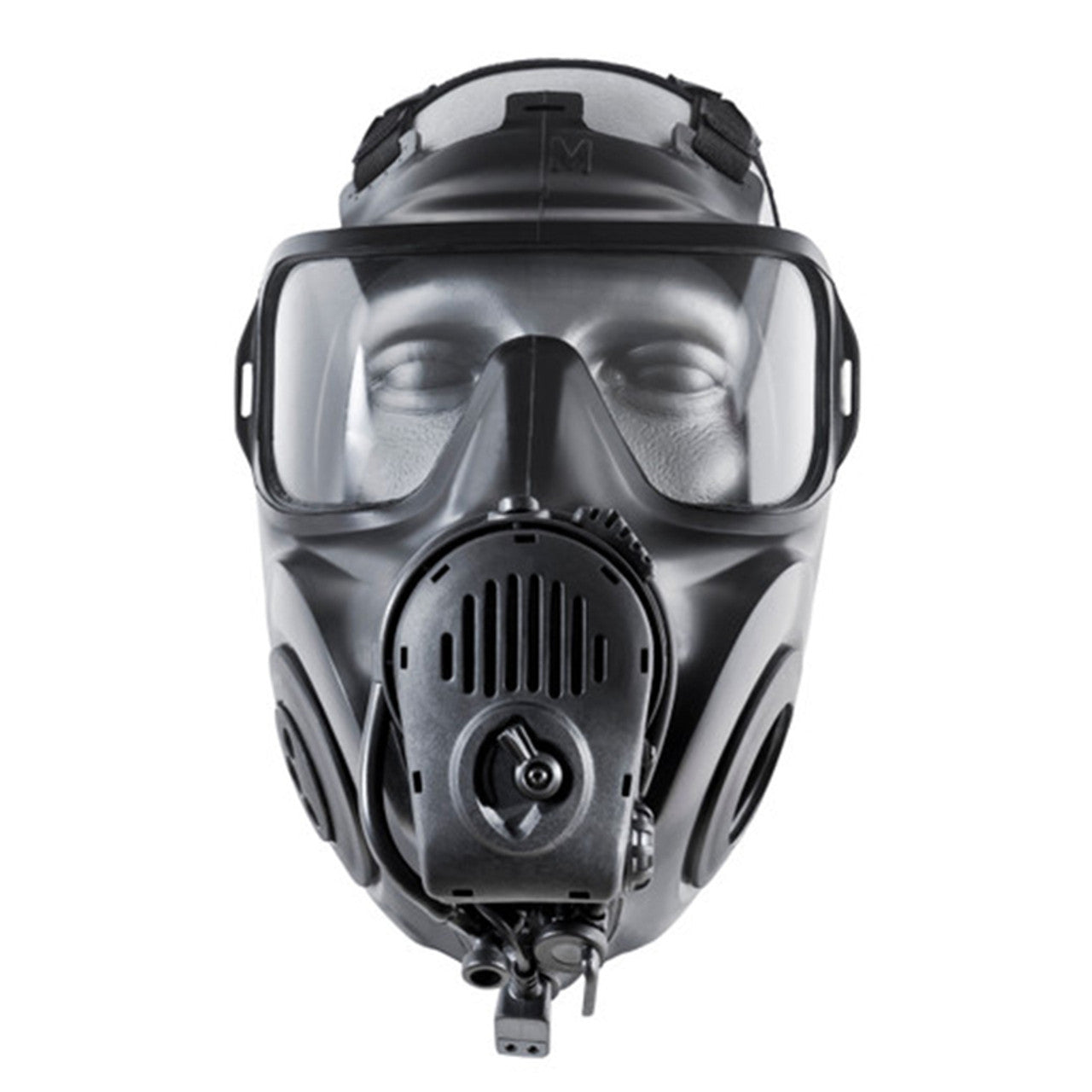

Avon Protection's revolutionary FM53 multi-role Respiratory Protective Equipment (RPE) System has been developed specifically for specialist applications where the user needs to respond to ever-changing operational conditions. The FM53 is globally acclaimed as the most technically advanced mask and offers both positive pressure SCBA, PAPR, and negative pressure APR/capability. All these capabilities are available from one mask platform without the need to change components.

The FM53 system was developed to address the multiple threats encountered on the modern battlefield, war on terrorism, and peace-keeping operations. It provides protection against traditional chemical and biological warfare agents and select toxic industrial materials (TIMs).

Features

Field of View

Panoramic single lens visor
Optically correct visor
Scratch Resistant

Comfort

4 face piece sizes for improved fit
Chlorobutyl rubber and silicone blend mask
Low profile design for superior weapons integration

Communications

Electronic Communication Port for integrated voice projection and radio communication
Optional VPU provides ability to easily communicate while wearing mask

Multiple Modes

Functions as both a negative and positive pressure mask
VREU lever for easy switching between negative and positive pressure modes

**Technical Data**
CBRN Agent Resistance
Mustard (H)	Greater than 36 hours
Sarin (GB)
Soman (GD)
VX
Laboratory protection factor performance (sodium chloride)	Greater than 10,000 NIOSH certified at 2000PF
Breathing Performance (excluding filter)
Re-breathed CO₂	0.80%
Inhalation resistance	85 l/Min	15 mm WG
Inhalation resistance	160 l/Min	32 mm WG
Exhalation resistance negative pressure mode	85 l/Min	15 mm WG
Exhalation resistance negative pressure mode	160 l/Min	30 mm WG
Exhalation resistance positive pressure mode:	40 mm WG
Weight
FM53 mask (excluding filter)	1.6 lbs
Field of view
Visual field Score - NIOSH CBRN standard	96
Materials Used
FM53 Mask Visor	Flexible polyurethane
FM53 Mask Facepiece	Chlorobutyl/Silicone Rubber
Hydration
Drinking Flow Rate	>230 ml/min

Warnings and Limitation of Use

Always perform a satisfactory negative pressure leak test before using this respirator.
Do not use in confined spaces such as stills, tanks or sewers. This device does not provide supplied breathable air.
It is unlikely that the requirements for inward leakage of the system will be met if facial hair, or spectacle side arms pass under the face seal of the full face mask.
Do not use this equipment in Oxygen deficient atmospheres (<19.5% Oxygen) or for airborne contaminants or pollutants for which the approved filter canister(s) will not provide adequate protection.
Do not use this equipment in Oxygen enriched atmospheres (> 22.5% Oxygen).
System set-up, pre-check, donning, doffing, cleaning and maintenance must be performed in an area known to be free of contaminants.
Do not use if any system component demonstrates signs of wear or damage.
Do not use in areas where the head harness may be exposed directly to flame.
